REMIR infrared camera

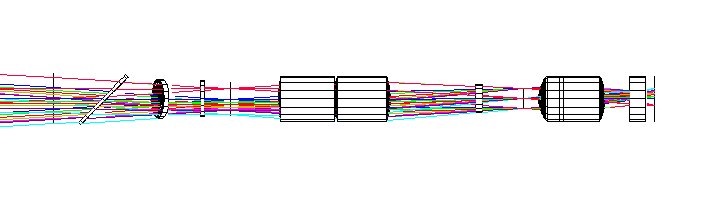

The infrared camera is working from 1 micron to 2.3 micron. Its optical layout is shown here and the choice of filter is possible thanks to a rotating whell within the cold dewar. The temperatures of the various places inside REMIR is shown in the tREMometer plot.

The NIR array on the image plane is a Hawaii I with a useful area of 512x512 pixels. The pixel scale is 1.2 arcsec/pix for a total field of view of about 10x10 arcmin.

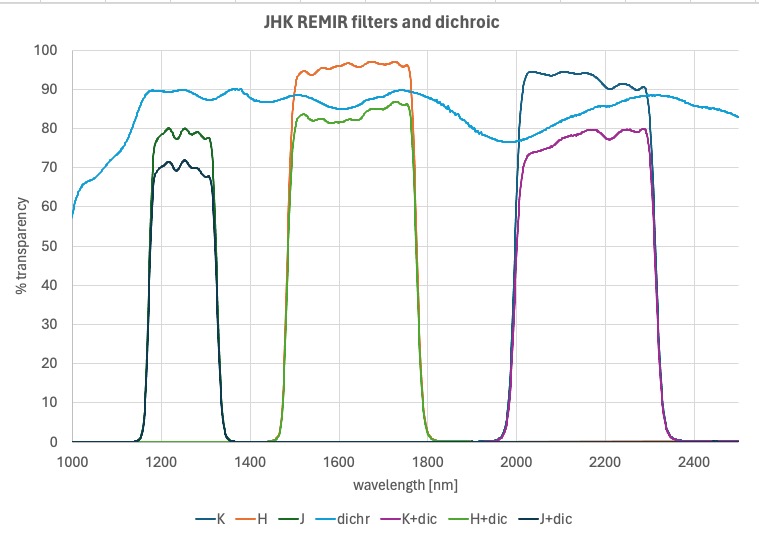

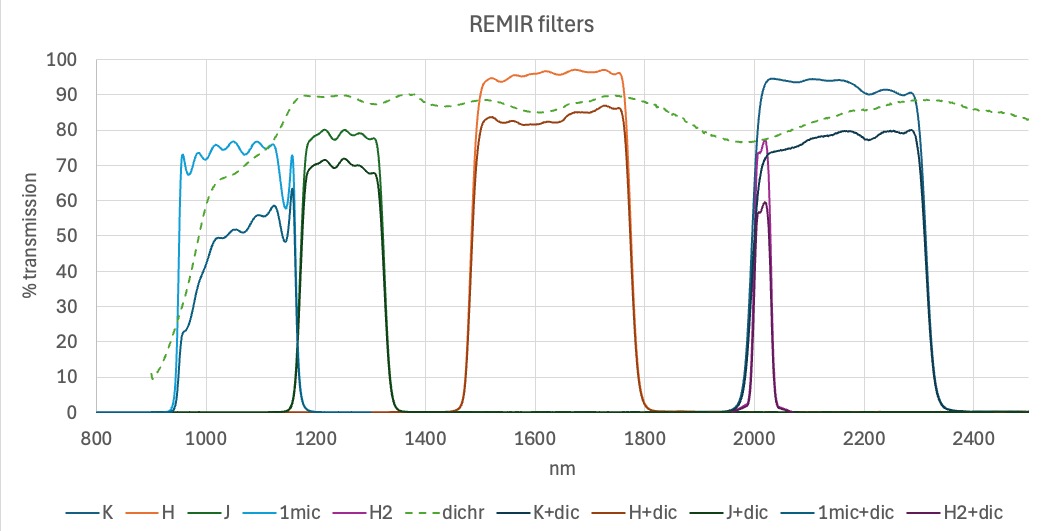

There are 4 filters available on the wheel: z, J, H, K'. The z filter is truncated by the 1 micron cut of the dichroic. The response of the J, H, K filters, together with dichroic transmission, is reported below in the figure and corresponding tabulas data can be found in the excel file.

Magnitude limits
From different measured frames obtained in the Sep/Oct 2006 period, here we present typical [t_exp, mag, S/N] performances for REMIR camera.

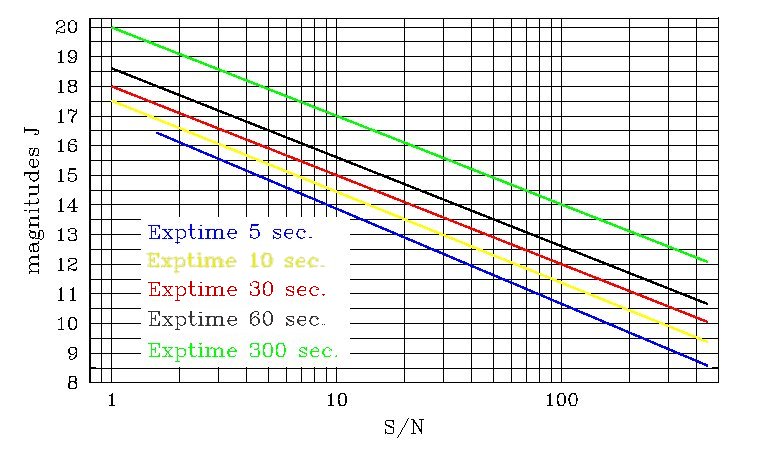

J band

H band

K band
